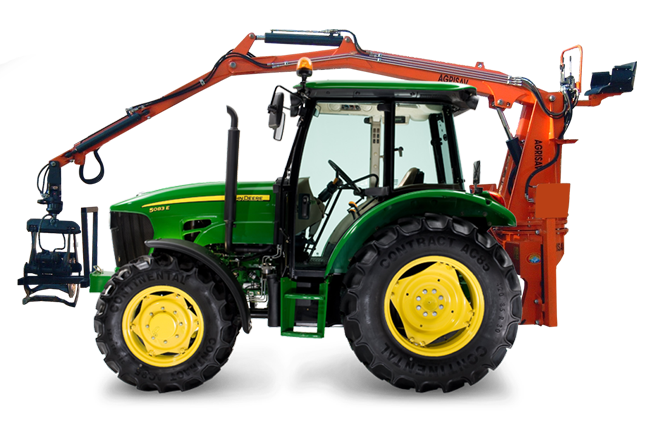

Forest Loader P.A.S. 800


Technical data
Model:P.A.S. 800
Max arm length (mm):6000
Max height (mm):6500
Max depth (mm):2900
Lifting weight in outstretched arm (Kg):800
Loader weight (Kg):1190
Rotation:360° (continued)
Fifth wheel diameter (mm):700
Telescope length (mm):800
Oil system (L):65
PTO (rpm):540
Working pressure (bar):160
Power required (Hp):90/150

Download the brochure







For this model is not available the reversible arm Z

Standard equipment:
• The driving position with the seat
• Universal three-point attacks
• Pump with oil reservoir
• Hydraulic telescopic arm
• Independent hydraulic feet

Accessories:
• Closed bucket
• Excavating bucket 30 cm
• Excavating bucket 40 cm
• Ditch cleaning bucket
• Manure fork
• Joystick controls
• Radio control
• Servo control
• Multiplier with tail shaft passer
• Mounting brackets
• Continuous rotor QL 30 RBI
• Grapple for trunks mm 1300
