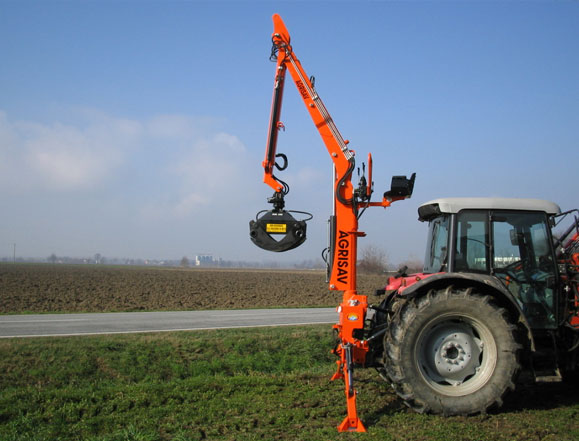

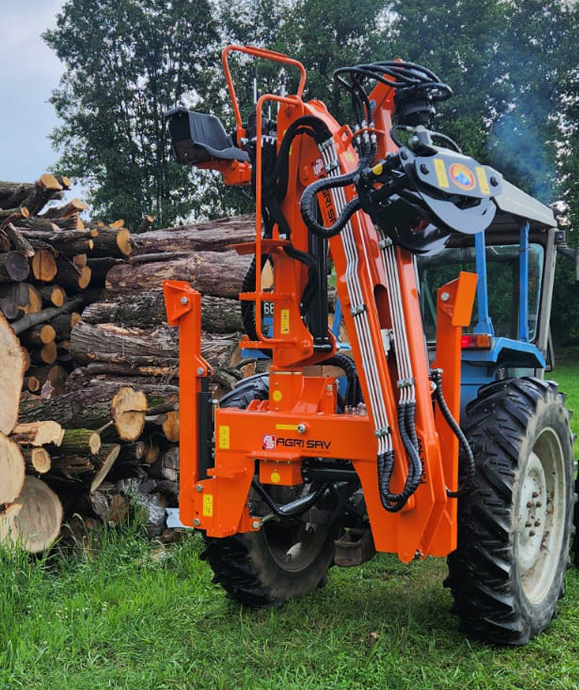

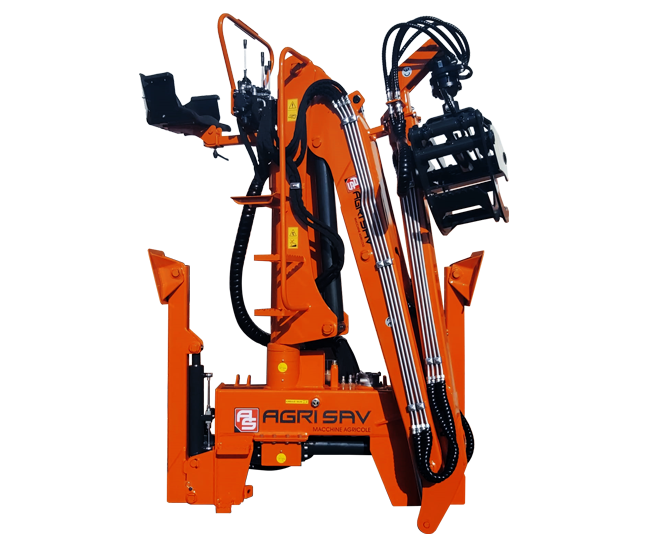

Forest Loader P.A.S. 600


Technical data
Model:P.A.S. 600
Max arm length (mm):5000
Max height (mm):5800
Max depth (mm):2700
Lifting weight in outstretched arm (Kg):600
Loader weight (Kg):820
Rotation:360° (not continued)
Telescope length (mm):900
Oil system (L):55
PTO (rpm):540
Working pressure (bar):160
Power required (Hp):70/130

Download the brochure





Standard equipment:
• Universal three-point attacks
• Pump with oil reservoir
• Independent hydraulic feet
• Mounting brackets
• Continuous rotor QL 35 RBI
• Grapple for trunks mm 1300
• Reversible arm Z

Accessories:
• Closed bucket
• Excavating bucket 30 cm
• Excavating bucket 40 cm
• Ditch cleaning bucket
• Manure fork
• Joystick controls
• Radio control
• Servo control
• Swivel hook
• Third hydraulic fastening point

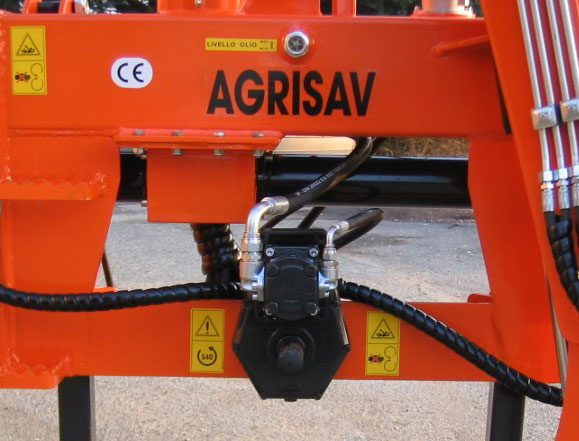

• Multiplier with tail shaft passer
