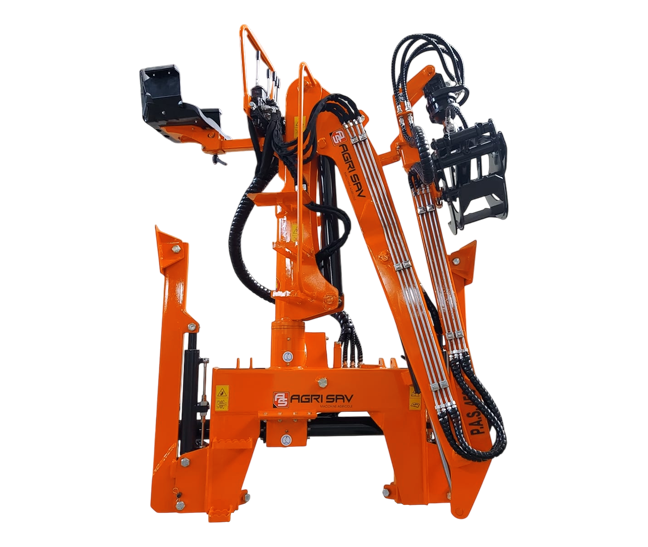

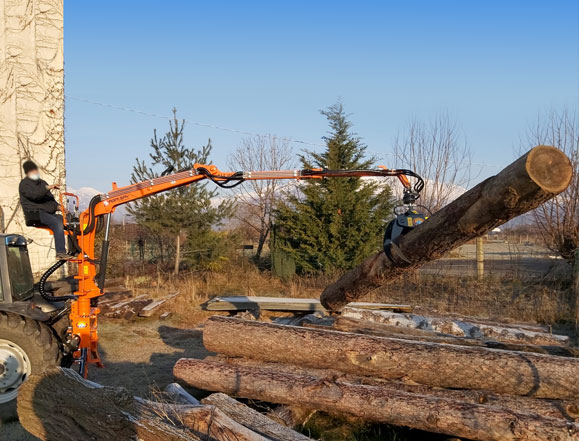

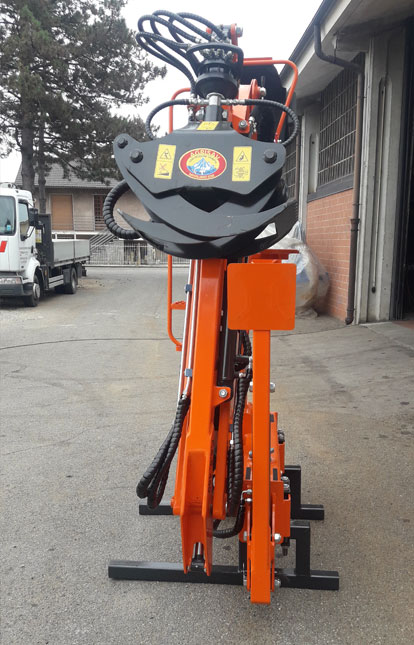

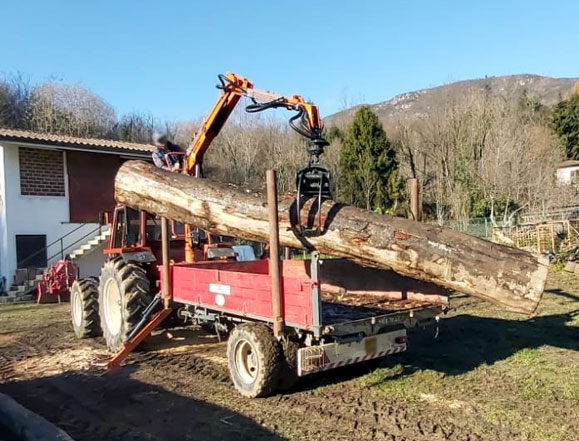

Forest Loader P.A.S. 450


Technical data
Model:P.A.S. 450
Max arm length (mm):4500
Max height (mm):5500
Max depth (mm):2500
Lifting weight in outstretched arm (Kg):450
Loader weight (Kg):610
Rotation:360° (not continued)
Telescope length (mm):800
Oil system (L):45
PTO (rpm):540
Working pressure (bar):150
Power required (Hp):50/80

Download the brochure







Standard equipment:
• The driving position with the seat

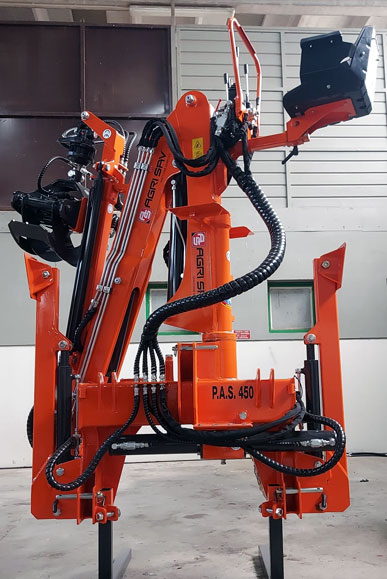

• Universal three-point attacks
• Pump with oil reservoir
• Independent hydraulic feet
• Telescopic arm mm 800

Accessories:
• Closed bucket
• Excavating bucket 30 cm
• Excavating bucket 40 cm
• Ditch cleaning bucket
• Manure fork
• Joystick controls
• Radio control
• Servo control

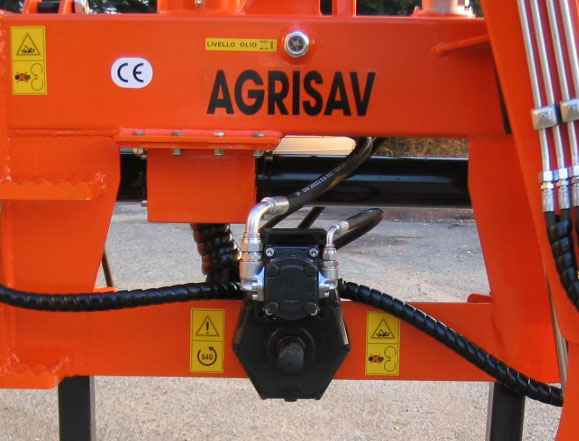

• Multiplier with tail shaft passer
• Mounting brackets
• Continuous rotor QL 30 RBI
• Grapple for trunks mm 1100
• Reversible arm Z
