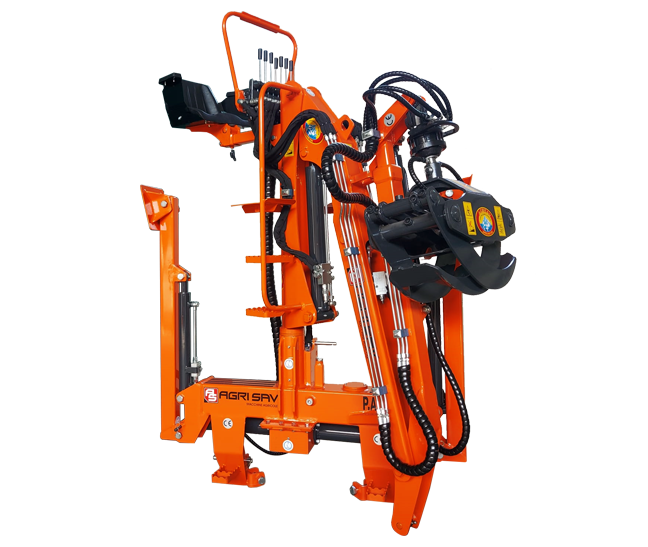

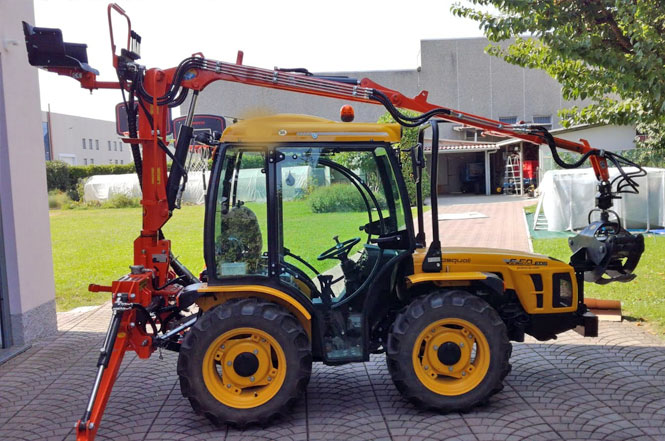

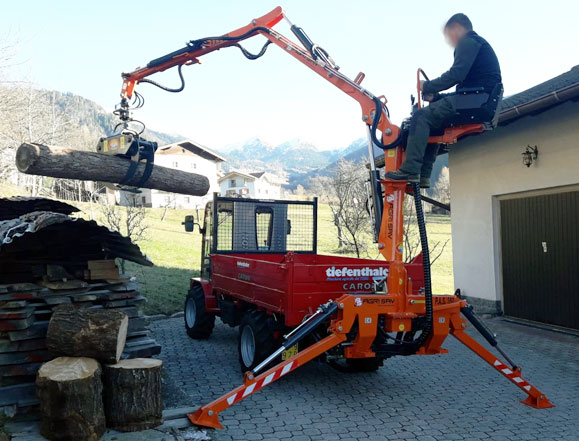

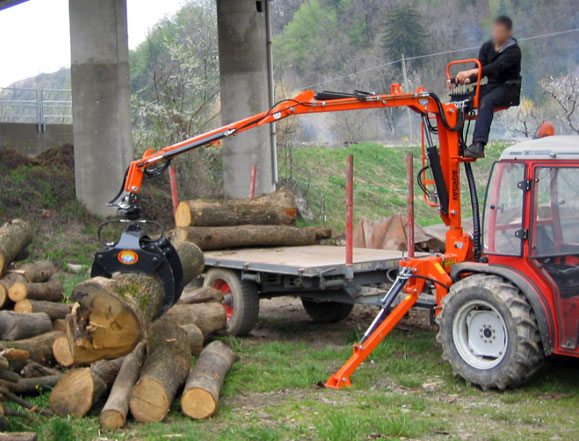

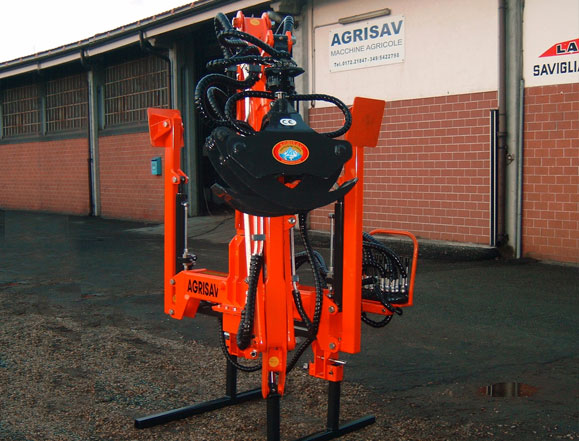

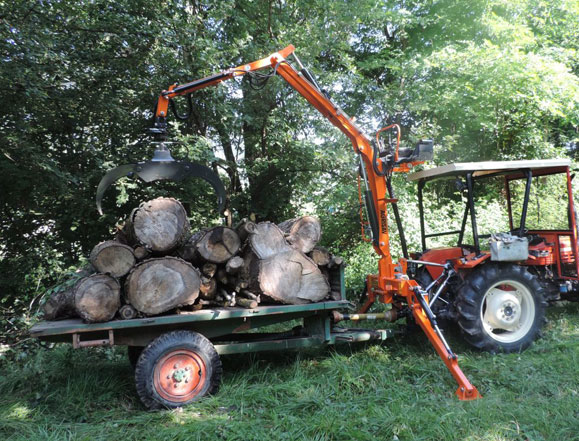

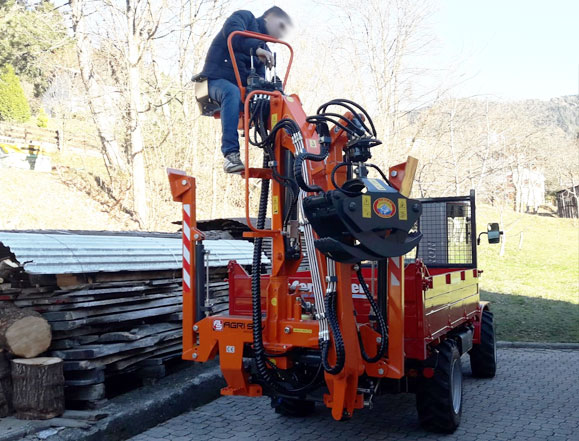

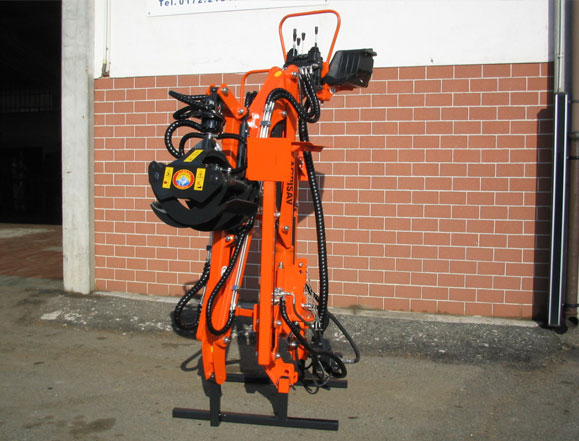

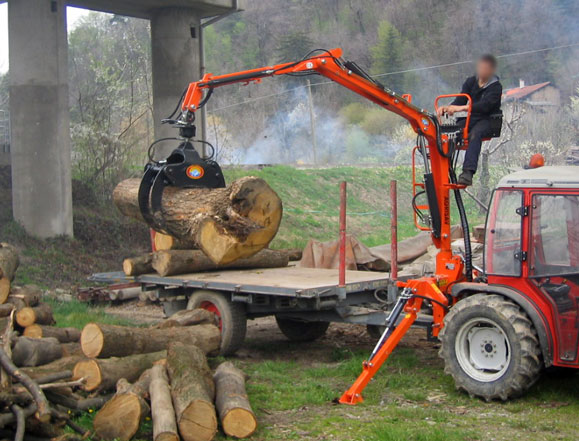

Forest Loader P.A.S. 350


Technical data
Model:P.A.S. 350
Max arm length (mm):3500
Max height (mm):5000
Max depth (mm):1900
Lifting weight in outstretched arm (Kg):350
Loader weight (Kg):480
Rotation:360° (not continued)
Telescope length (mm):500
Oil system (L):40
PTO (rpm):540
Working pressure (bar):150
Power required (Hp):35/50

Download the brochure







Standard equipment:
• Universal three-point attacks
• Pump with oil reservoir
• Independent hydraulic feet
• Mounting brackets
• Continuous rotor QL 10 RBI
• Grapple for trunks mm 1100
• Reversible arm Z

• Hydraulic telescopic arm
Accessories:
• Closed bucket
• Excavating bucket 20 cm
• Excavating bucket 30 cm
• Ditch cleaning bucket
• Manure fork
• Joystick controls
• Radio control
• Servo control
• Swivel hook
• Third hydraulic fastening point

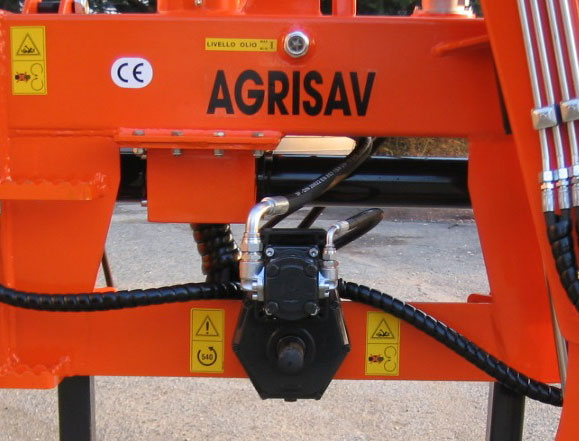

• Multiplier with tail shaft passer
