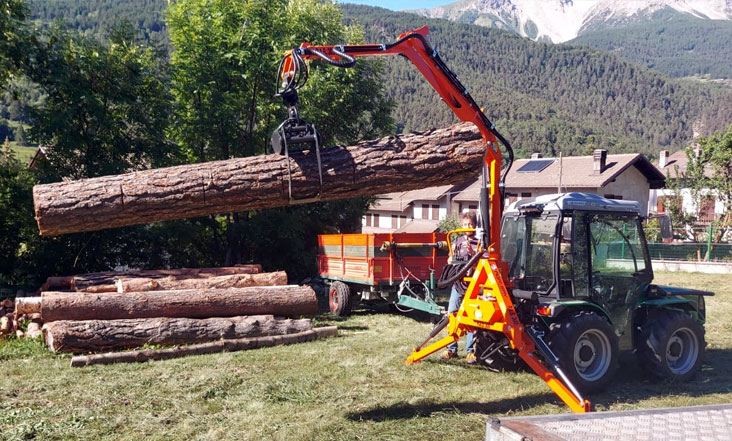

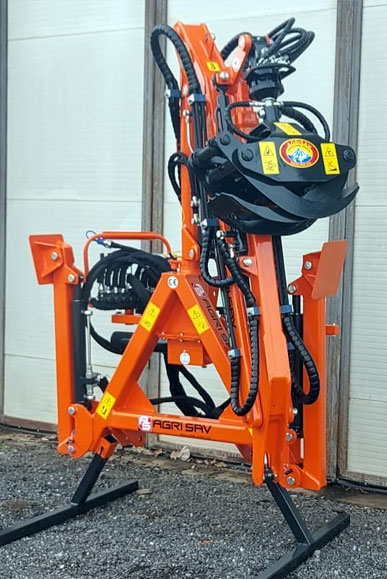

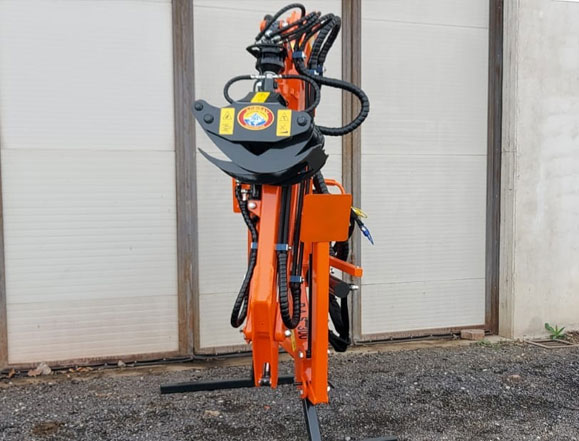

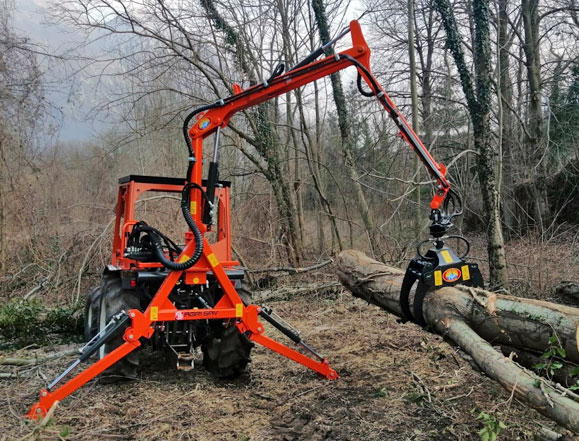

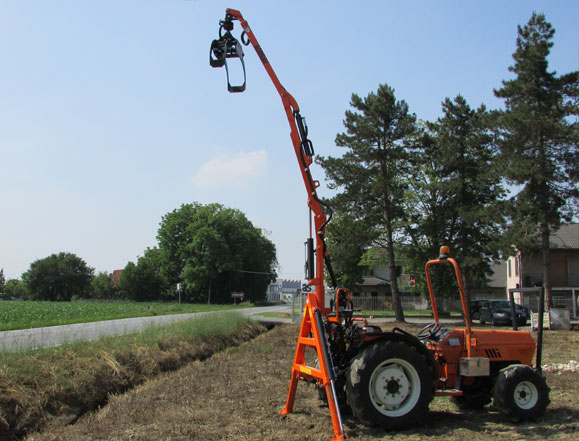

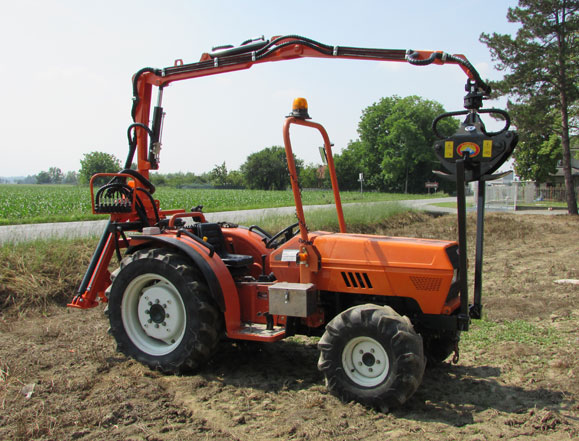

Forest Loader P.A.S. 300


Technical data
Model:P.A.S. 300
Max arm length (mm):3500
Max height (mm):4900
Max depth (mm):1700
Lifting weight in outstretched arm (Kg):300
Loader weight (Kg):360
Rotation:360° (not continued)
Telescope length (mm):500
Working pressure (bar):150
Power required (Hp):25/50

Download the brochure









Standard equipment:
• Reversible arm Z
• Hydraulic telescopic arm
• Universal three-point attacks
• Independent hydraulic feet
• Mounting brackets
• Continuous rotor QL 10 RBI

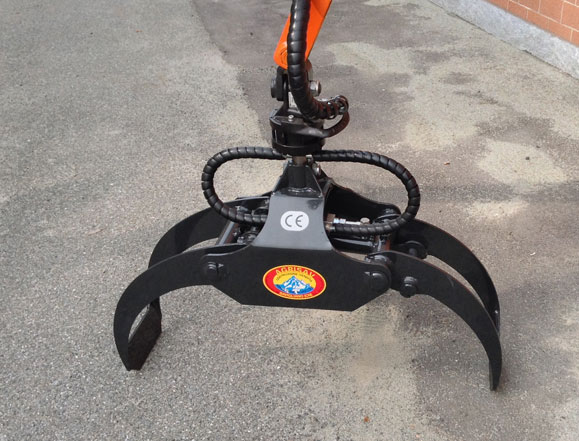

• Grapple for trunks mm 1000

Accessories:

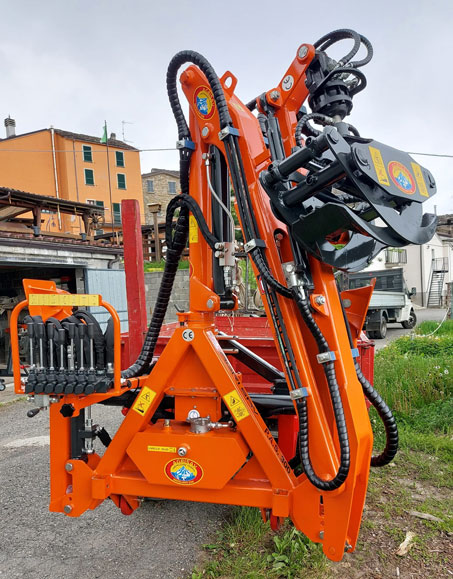

• Pump and oil reservoir

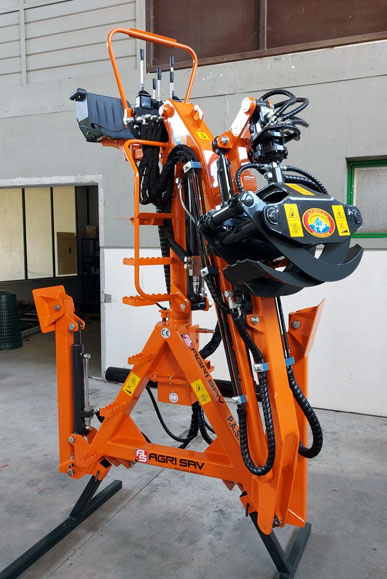

• The driving position with the seat
• Manure fork
• Excavating bucket 200mm with piston
• Excavating bucket 250 mm with piston

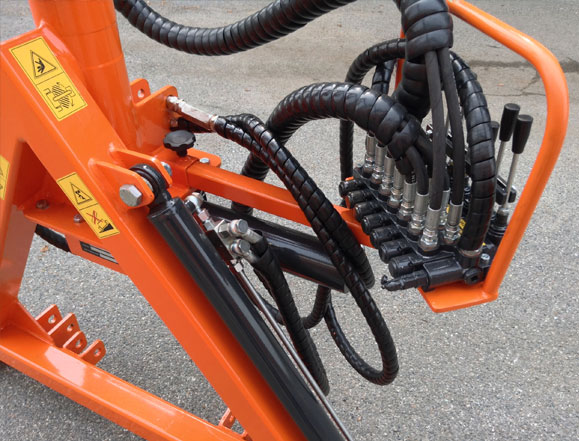

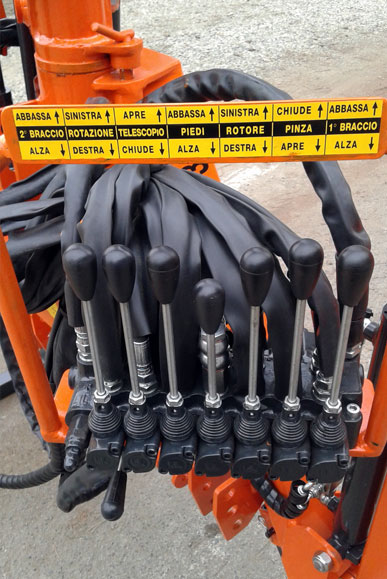

• Joystick controls
• Manual swivel hook
• Multiplier with tail shaft passer
