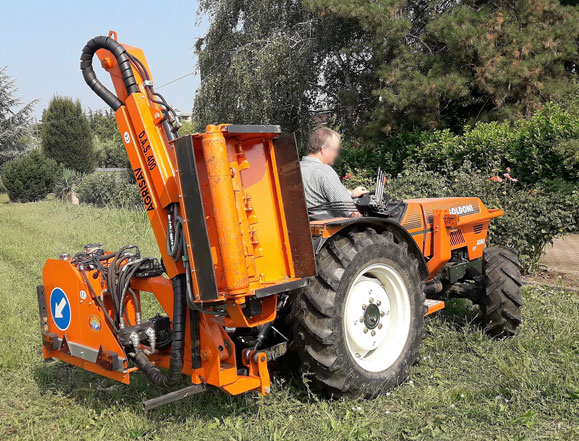

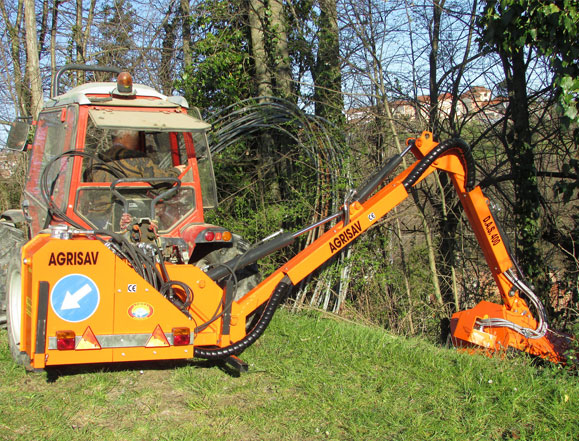

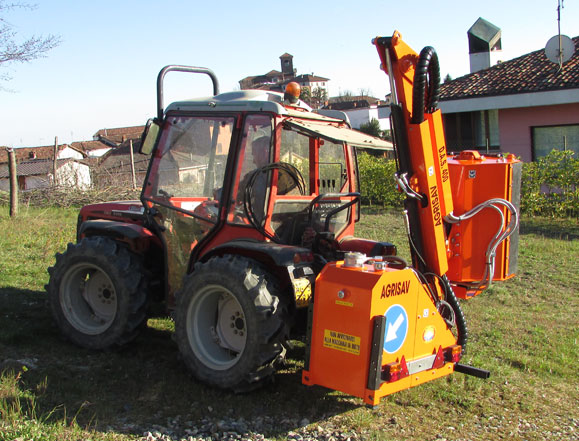

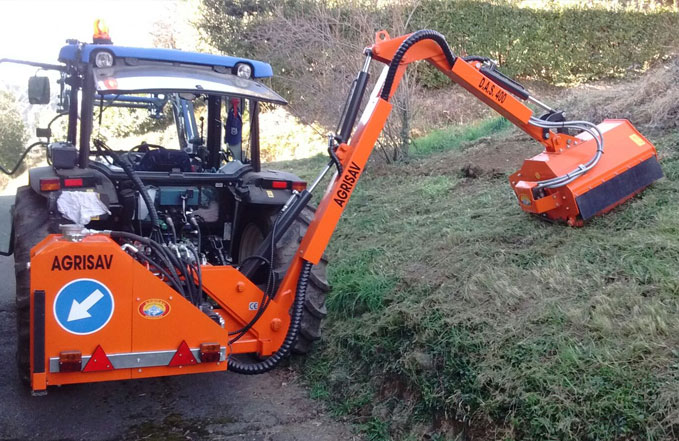

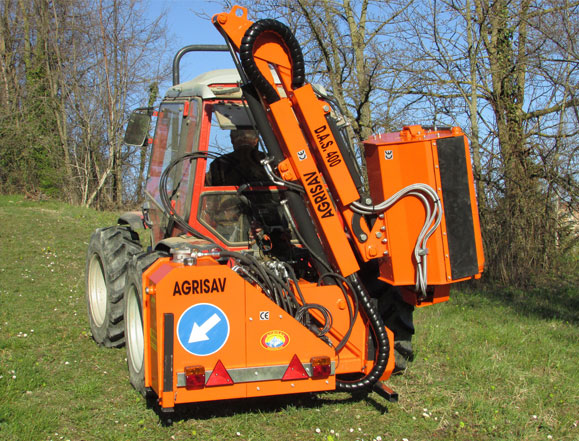

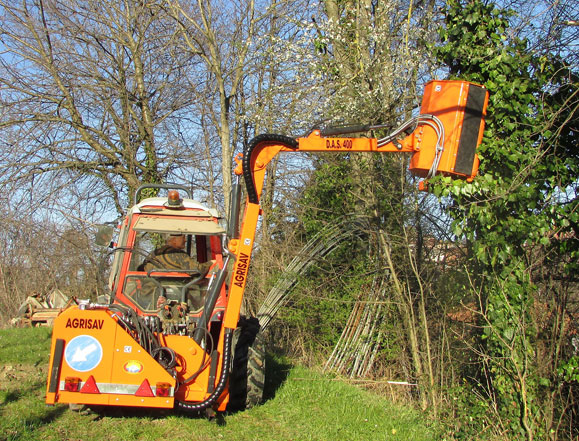

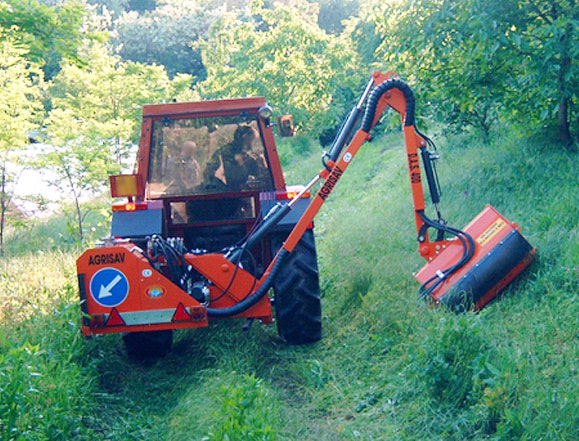

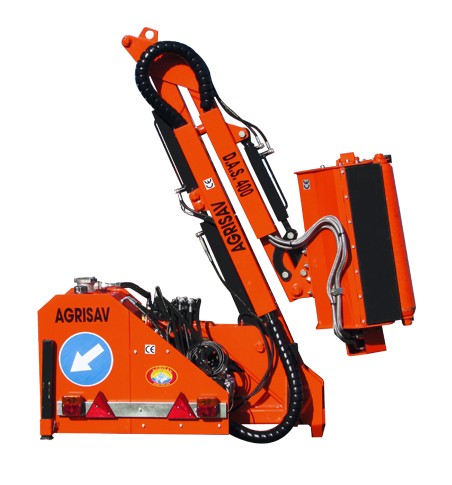

Bushcutters D.A.S. series 2


Technical data
Model:DAS 350/2DAS 400/2DAS 450/2
Maximum extension (mm):370043004800
Weight (Kg):450500550
Oil reservoir (L):100100100
Rotor (Rpm):300030003000
P.d.f. (Rpm):540540540
Head angle:190°190°190°
Headboard available (mm):600/800800/1000800/1000
Power required (Hp):40/6050/7060/80




Measure A (mm):250028503350
Measure B (mm):390041504650
Measure C (mm):245024502650
Measure D (mm):440044504750
Measure E (mm):700850900
Measure F (mm):100010001000

Download the brochure







Standard equipment:
• Universal three point hitch
• PTO shaft
• Controls with cable mm 2500
• Reversible cutter hydraulic motor 25 HP
• Cutting rotation inverter
• Floating system (selflevelling the ground)

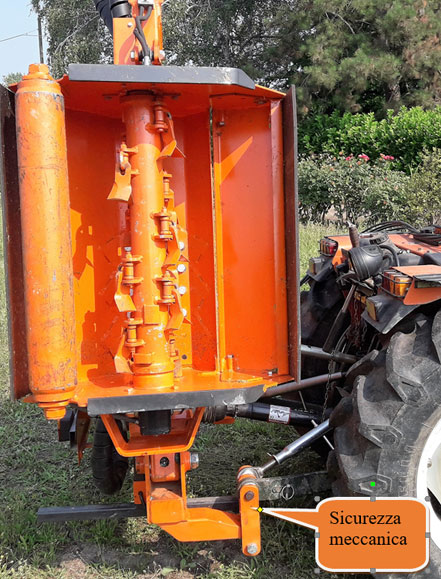

• Mechanical safety
• Roller adjustable in height
• Adjustable front protection
• Rear protection
• Direct transmission
• Navigation bar

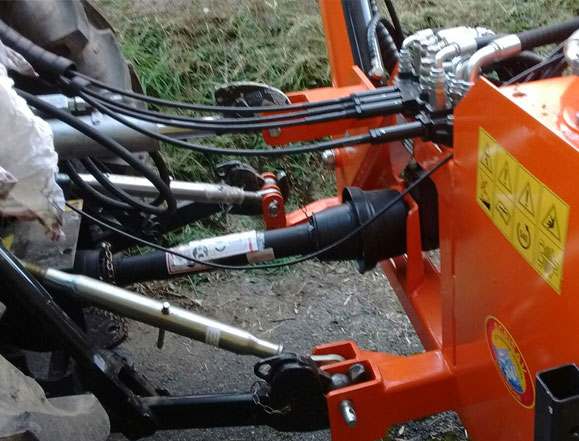

• Fixing the tractor pullers

Accessories:
• Electrical panel commands
• Electric controls with joystick
• Electric remote control
• Oil cooler
• Hydraulic swivel head
• Mechanical swivel head
• Hydraulic safety

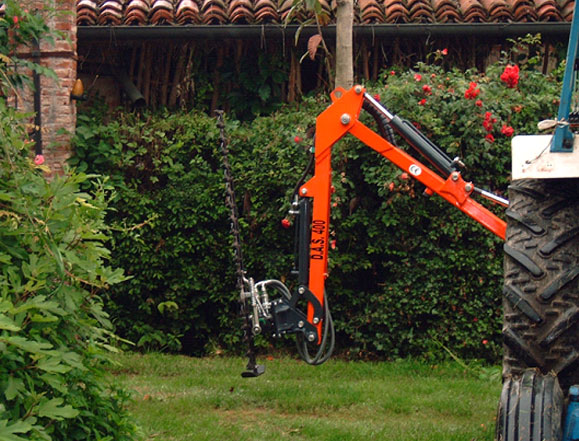

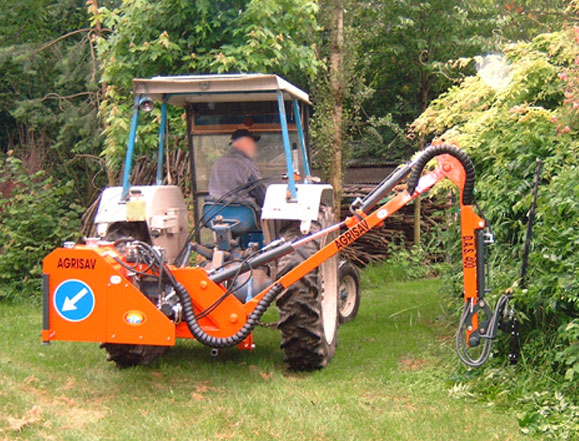

• Cutter bar
• Transmission with belt
