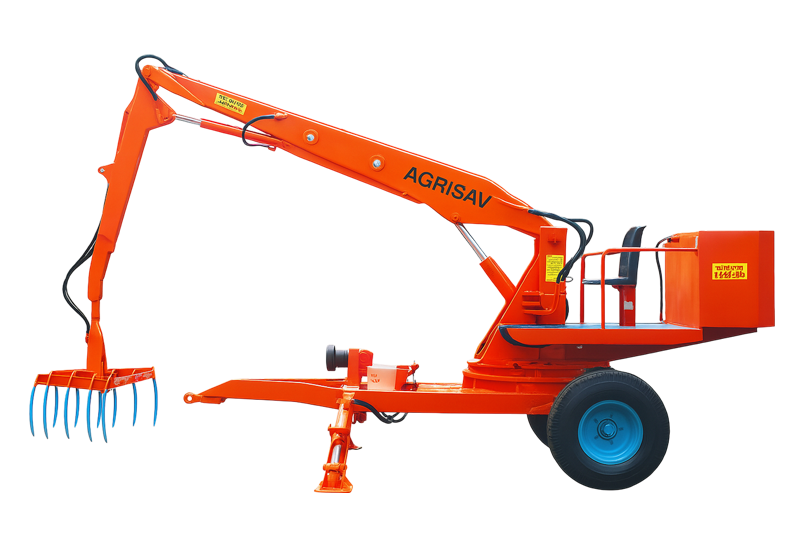

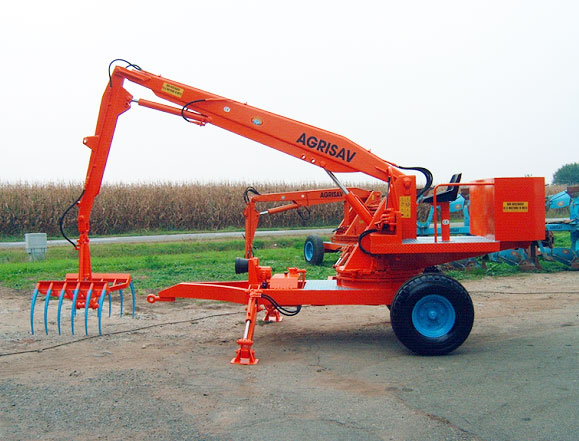

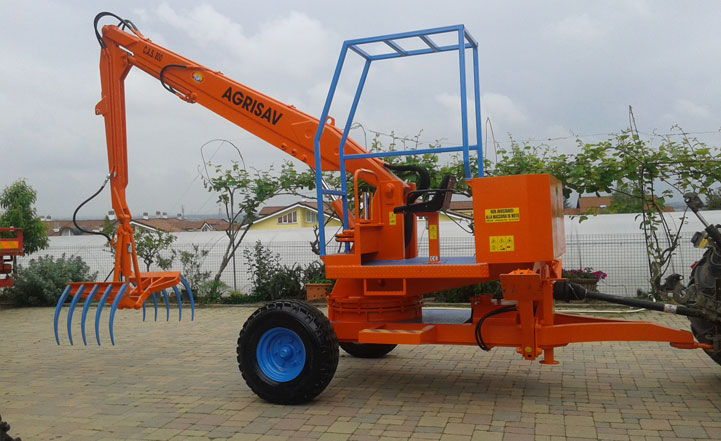

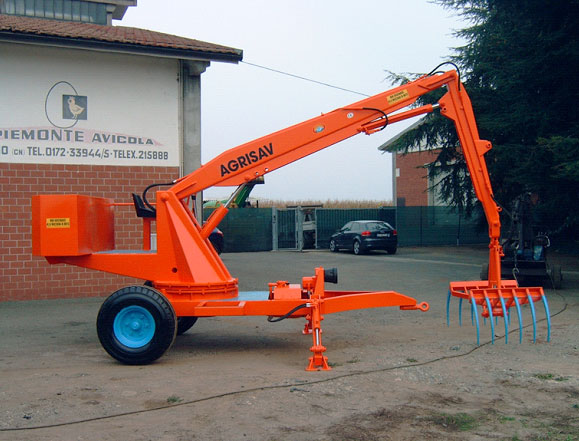

Loader C.A.S. 800


Technical data
Model:C.A.S. 800
Max arm length (mm):5600
Max height (mm):5000
Max depth (mm):2600
Lifting weight in outstretched (Kg):800
Loader weight (Kg):1400
Continuous rotation:360°
Fifth wheel diameter (mm):880
Oil system (L):65
PTO (rpm):540
Working pressure (bar):140




Standard equipment:
• Safety valve CE approved
• Hydraulic feet

Accessories:
• Joystick controls
• Closed bucket
• Swiveling load hook

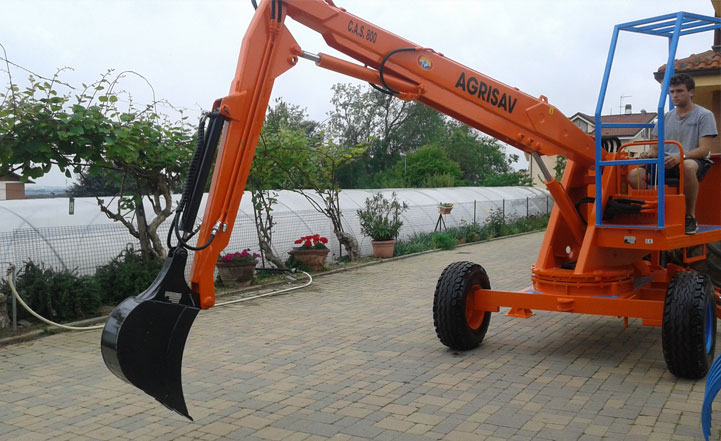

• Excavating bucket
• Ditch cleaning bucket
• Hydraulic rear feet
• Wood grapple
• Manure fork
• Telescopic arm
