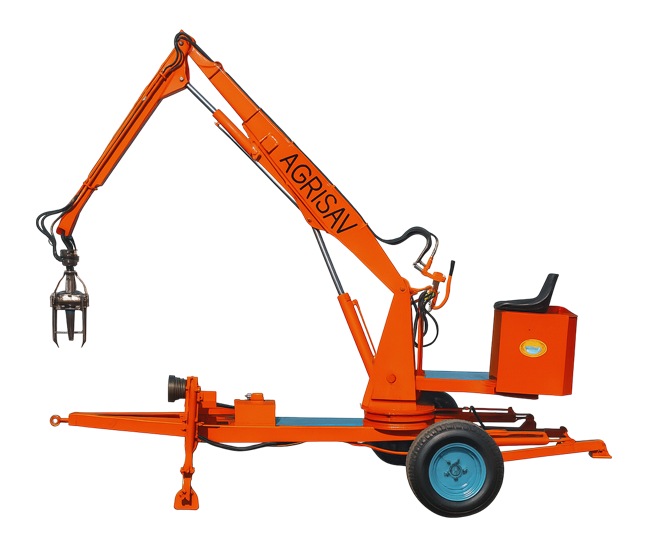

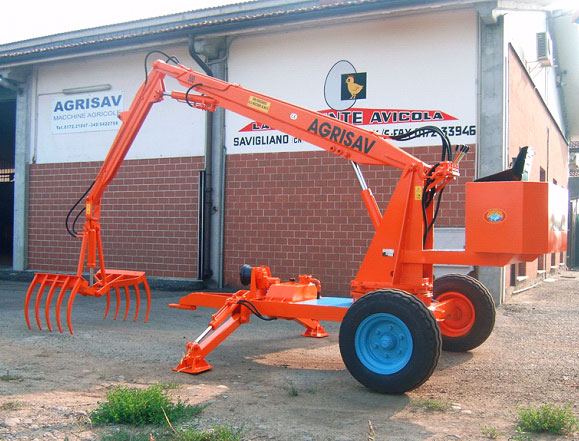

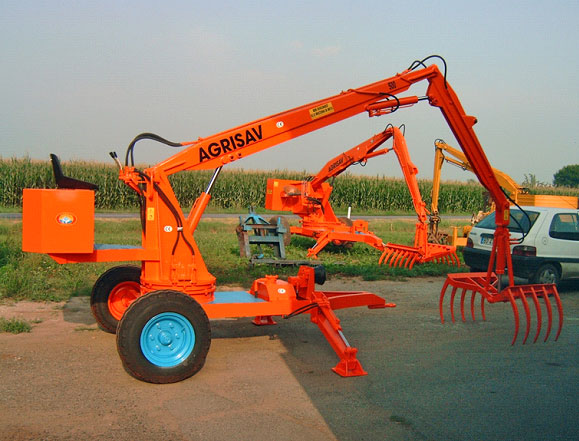

Loader C.A.S. 500


Technical data
Model:C.A.S. 500
Max arm length (mm):5000
Max height (mm):4800
Max depth (mm):2400
Lifting weight in outstretched (Kg):500
Loader weight (Kg):950
Continuous rotation:360°
Fifth wheel diameter (mm):700
Oil system (L):60
PTO (rpm):540
Working pressure (bar):140




Standard equipment:
• Safety valve CE approved
• Two hydraulic feet

Accessories:
• Joystick controls
• Mechanical swiveling load hook
• Excavating bucket
• Ditch cleaning bucket
• Hydraulic rear feet
• Wood grapple
• Manure fork
• Telescopic arm
