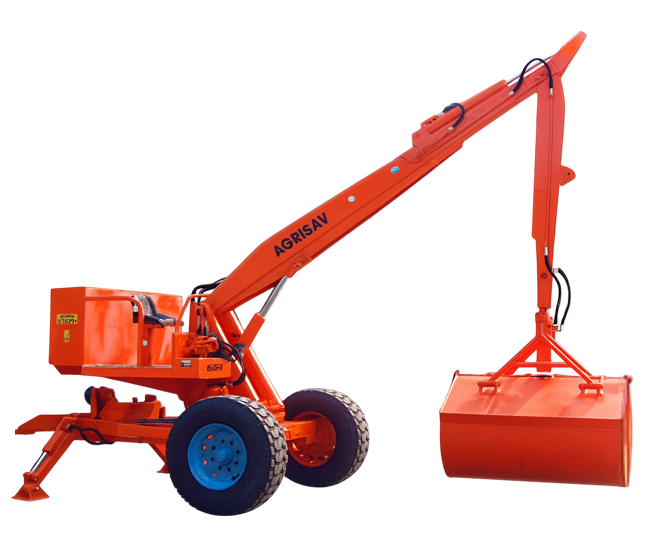

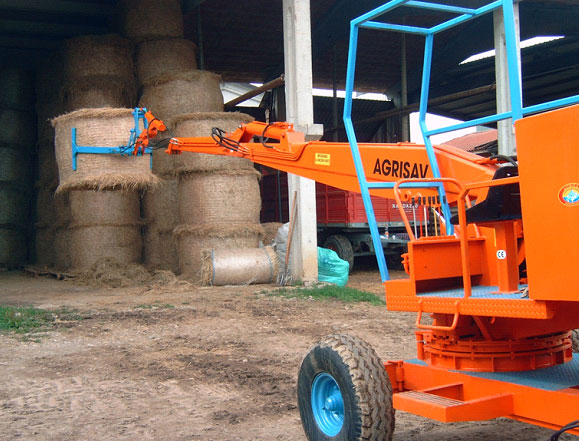

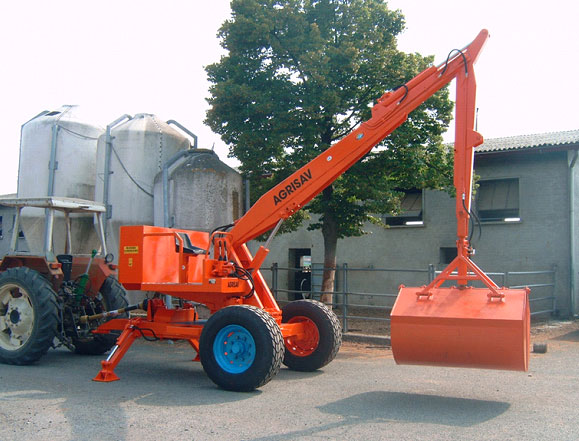

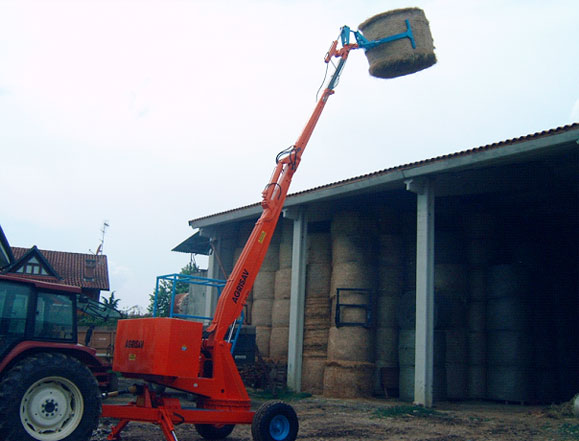

Loader C.A.S. 1500


Technical data
Model:C.A.S. 1500
Max arm length (mm):7000
Max height (mm):6700
Max depth (mm):3600
Lifting weight in outstretched (Kg): 1500
Loader weight (Kg):2800
Continuous rotation:360°
Fifth wheel diameter (mm):1000 (doppio giro di sfere)
Oil system (L):100
PTO (rpm):540
Working pressure (bar):140




Standard equipment:
• Safety valve CE approved
• Hydraulic feet

Accessories:
• Joystick controls
• Closed bucket
• Swiveling load hook
• Excavating bucket
• Ditch cleaning bucket
• Hydraulic rear feet
• Wood grapple
• Manure fork
• Telescopic arm
